Optimizing Production: Custom High-performance PVC Pipe Extrusion Line For Water Supply Factory by JURRY

KUNSHAN, JIANGSU, CHINA, September 10, 2026 /EINPresswire.com/ -- Municipal water distribution networks require pipes that can withstand sustained internal pressure, resist chemical degradation, and maintain strict hygiene standards over a service life often exceeding fifty years. When sourcing equipment for a water supply factory, conventional, off-the-shelf machinery frequently falls short of meeting these rigorous criteria, as minor variations in raw materials or local regulatory standards demand specialized processing conditions. To address these operational challenges, municipal pipe manufacturers are increasingly adopting a custom high-performance PVC pipe extrusion line for water supply factory installations to guarantee exact compliance with international standards such as NSF/ANSI 61 or BS EN 1452. Shanghai Jurry Plastics Machinery Co.,Ltd engineering approach focuses on this precise calibration, moving away from standardized hardware toward tailored processing systems that match the specific polymer formulations, pressure ratings, and output requirements of individual production facilities.

Technical Calibration: Moving from Standard Systems to Tailored Solutions
1.Polymer Rheology and Screw Configuration
The production of reliable water supply pipes depends heavily on the uniform gelation of the PVC compound. Whether a factory utilizes unplasticized PVC (PVC-U), modified PVC (PVC-M), or high-impact formulations, the raw material exhibits distinct rheological behaviors under heat and shear. Shanghai Jurry Plastics Machinery Co.,Ltd addresses this variability by designing proprietary screw and barrel geometries tailored to the specific formulations of the client.
Parallel twin-screw extruders feature customized flight profiles and localized kneading blocks that optimize the residence time of the melt. This specialized configuration prevents thermal degradation while ensuring complete dispersion of stabilizers and processing aids. Precise multi-zone barrel temperature control systems, utilizing both structured air cooling and internal oil circulation for the screws, maintain thermal stability within tight parameters, eliminating localized overheating that can weaken the physical properties of the final pipe.
2.Extrusion Die Geometry and Wall Thickness Control
The extrusion die plays a critical role in determining the structural integrity of pressure pipes. To handle varying Standard Dimension Ratios (SDR) and nominal diameters ranging from small-bore distribution pipes to massive DN1200 transmission mains, JURRY develops custom spider dies and splitting die heads.
The internal flow channels are engineered using computational fluid dynamics to minimize weld lines and balance pressure distribution across the entire circumference of the melt. This design minimizes internal stresses within the pipe wall, ensuring uniform mechanical strength. Proper melt distribution also reduces the occurrence of thin spots, allowing manufacturers to meet rigorous pressure ratings without over-designing wall thickness, which saves significant raw material costs over extended production runs.

Modular Configuration and Downstream Processing
Integrating a reliable high-performance PVC pipe extrusion line requires a seamless transition from the extruder to the final packaging stage. Modern water supply pipe manufacturing relies on structured, modular downstream equipment to maintain dimensional stability and throughput.

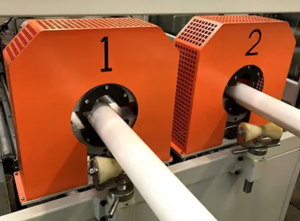

The production sequence begins with high-efficiency vacuum sizing and cooling technology. Multi-stage vacuum tanks fabricated from stainless steel utilize precise spray nozzles to establish rapid, uniform cooling. Exact vacuum regulation prevents the deformation of the hot extrudate as it exits the die, ensuring strict roundness and outer diameter compliance. Following cooling, synchronized haul-off systems, equipped with multi-caterpillar pullers driven by precise servo motors, provide a consistent pulling force without slipping or distorting the pipe. These haul-off units interface directly with the main extruder control panel, automatically adjusting speed to match changes in extrusion output.
Downstream efficiency is further enhanced by precision cutting systems. High-speed, dust-free swarfless cutting machines execute clean, square cuts, which eliminates the need for secondary deburring and prevents plastic dust from contaminating the factory environment. Finally, for automated pipe jointing, integrated inline belling machines form precise solvent-cement sockets or elastomeric gasket grooves, such as R-type or blow-type configurations, directly inline to ensure leak-free connections during field installation.

Production Efficiency and International Standard Compliance

Maintaining a competitive edge in pipe manufacturing requires a balance between strict quality control and optimized energy consumption. Advanced automation systems play a pivotal role in achieving this balance by monitoring critical parameters in real time. Through the integration of gravimetric dosing systems and ultrasonic wall thickness monitors, a PVC pipe extrusion line for water supply applications can automatically adjust the extruder speed or haul-off traction. This continuous feedback loop ensures that wall thickness variations stay within a tight margin of plus or minus 0.5%, preventing localized structural weak points and minimizing material waste.
Operational efficiency also extends directly to resource conservation. By utilizing synchronized AC permanent magnet motors and optimized heating elements, JURRY systems achieve a fifteen to twenty percent reduction in energy consumption compared to legacy extrusion equipment. This reduction significantly lowers total operational costs while shrinking the environmental footprint of the facility. For factories implementing molecular orientation technologies to produce PVC-O pipes, the precise temperature stretching algorithms significantly enhance impact resistance and hydrostatic strength, ensuring immediate acceptance by municipal water authorities according to ISO 4427 guidelines.

Lifecycle Support and Comprehensive Engineering Services
Implementing a custom high-performance PVC pipe extrusion line requires comprehensive technical support that extends well beyond equipment delivery. Shanghai Jurry Plastics Machinery Co.,Ltd provides an end-to-end service framework designed to de-risk capital investments for municipal pipe producers.
During the pre-engineering phase, technicians conduct raw material analysis and factory layout planning to optimize the workflow from material feeding to final product storage. This ensures that downstream cooling lines and automated packaging modules fit perfectly within the available floor space.
With technical experience spanning installations across more than 120 countries, the engineering teams manage onsite commissioning, calibration, and multi-lingual operator training. This global service capability ensures that local production teams can independently manage the advanced PLC automation interfaces, schedule preventive maintenance, and troubleshoot operational variables. Access to a reliable spare parts inventory further minimizes unscheduled downtime, protecting the continuity of supply for long-term municipal infrastructure contracts.

Achieving Sustainable Value Through Targeted Design
Investing in a customized PVC pipe extrusion line for water supply factory operations represents a strategic approach to managing long-term manufacturing costs. While generic extrusion machinery may feature lower initial procurement costs, the inability to fine-tune processing parameters often results in higher scrap rates, excessive material consumption, and increased energy usage.
By aligning extruder dynamics with specific raw material profiles and precise product dimensions, manufacturers achieve higher yield rates and reliable product quality. This targeted engineering approach ensures that municipal water supply pipes consistently meet strict safety and durability standards, delivering sustainable economic value and operational reliability across the entire lifecycle of the production facility.
For detailed technical specifications and custom line configurations, please visit: www.jurryextrusion.com
